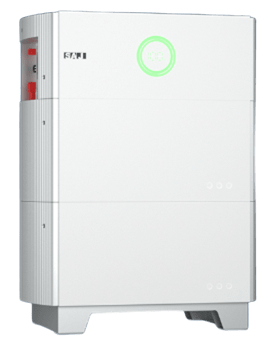

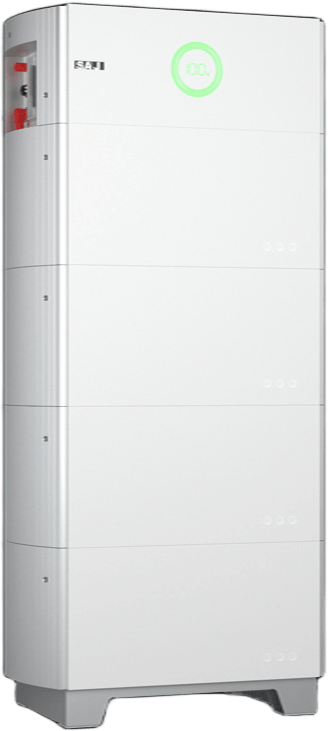

B2 battery is a high-voltage cobalt free LiFePO4 battery. With a sheet metal shell, it adpats a structure compatible with wall-mounting and stacking installation methods. The pack of B2 Battery contains battery modules and a BMS controller. The number of battery modules can be flexibly matched according to the user’s power demand, and up to 5 modules can be connected (25.0kWh).

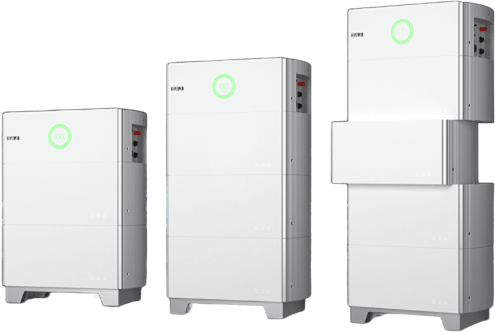

Easy Installation
The B2 battery has a smart stacking design and a modular layout, making it efficient and easy to use. This careful design allows for simple installation and upkeep, so users can quickly set up the battery system and handle maintenance with little effort.
B2 Series High Voltage Lithium Battery
| No. of Modules 1~5 | Rated Energy [kWh] 5.12~25.6 |
| Usable Energy [kWh] 4.6~23 | Weight [kg] 50.5~252.5 |
| Nominal Voltage [V] 102.4~512 | Charger Voltage [V] 115.2~576 |
| Max. Charge Current [A] 30 | Max. Discharge Current [A] 30 |
| Control Module Dimension (H*W*D) [mm] 220 * 626 * 365 | Control Module Weight [kg] 11 |
